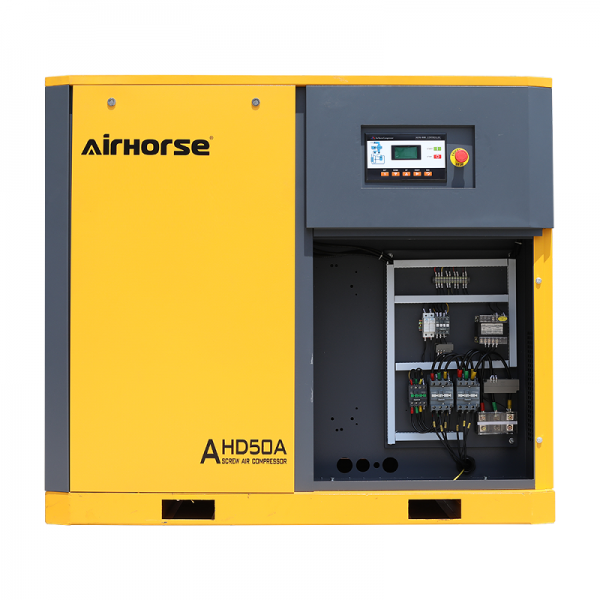

The direct drivn screw compressor uses GHH air end,which provides high-quality air you can rely on to avoid costly downtime and production delays.
New Type,GHH Air End,VSD(Variable Speed) Available
The direct drivn screw compressor uses GHH air end,which provides high-quality air you can rely on to avoid costly downtime and production delays.The robust design ensures your processes will function continuously even in the harshest conditions such as temperature up to 55℃.The direct driven screw air compressors are easy to install and use,require minimal on-site installation work,and are simple to operate and maintain.
Technical Parameters of the GHH Air End Screw Air Compressor(Belt-Driven Type)
Model
|
AH-30A
|
AH-50A
|
AH-75A
|
AH-100A
|
AH-120A
|
AH- 150A/W |
AH-175A/W
|
H-200W
|
AH-250W
|
AH-300W
|
AH-350W
|
Freee air
compressor/Discharge pressure(m³ /min/Mpa) |
3.8/0.7
3.6/0.8 3.2/1.0 2.8/1.2 |
6.8/0.7
6.2/0.8 5.6/1.0 4.9/1.2 |
10.0/0.7
9.1/0.8 8.5/1.0 7.6/1.2 |
13.5/0.7
12.6/0.8 11.2/1.0 10.0/1.2 |
16.1/0.7
15.0/0.8 13.8/1.0 12.3/1.2 |
21/0.7
19.8/0.8 17/1.0 15.3/1.2 |
25.2/0.7
24/0.8 21/1.0 18.3/1.2 |
28.7/0.7
27.6/0.8 24.6/1.0 21.5/1.2 |
32.0/0.7
30.5/0.8 27.5/1.0 24.8/1.2 |
36.7/0.7
34.5/0.8 30.2/1.0 27.8/1.2 |
42.0/0.7
40.5/0.8 38.1/1.0 34.6/1.2 |
No.of compression stage | single stage | ||||||||||
Ambient temprerature
|
-5–+45℃ | ||||||||||
Cooling Model
|
Air –Cooling
|
Air-Cooling&Water-Cooling
|
|||||||||
Discharge temperature (℃)
|
Ambient temperature+15°℃
|
||||||||||
Lubricant (L)
|
18
|
30
|
65
|
90
|
110
|
||||||
No |
68±2
|
72±2
|
75±2
|
72±2
|
|||||||
Drive method
|
Direct Driven
|
||||||||||
Electricity (V/ph/Hz) | 380/3/50 | ||||||||||
Power (KW) |
22
|
37
|
55
|
75
|
90 |
110
|
132
|
150
|
55 |
185
|
250
|
Starting method | Y-△Starter | ||||||||||
Dimension:length/ width/height (mm) |
1380×
850× 1160 |
1600×
1000× 1360 |
2100×
1250× 1700 |
1900×1615×1730
|
Air-Cooling:3000 Water-Cooling:2500 Air-Cooling:1620 Water-Cooling:1620 Air-Cooling:1860 Water-Cooling:1840 |
2800×
1800× 1900 |
3300×
1900× 1950 |
||||
weight (kg) |
680
|
1060
|
1880
|
1980
|
2100
|
2900
|
3500
|
3900 |
4200
|
4600
|
5000
|
