กรองอากาศ กรองลม กรองน้ำมัน

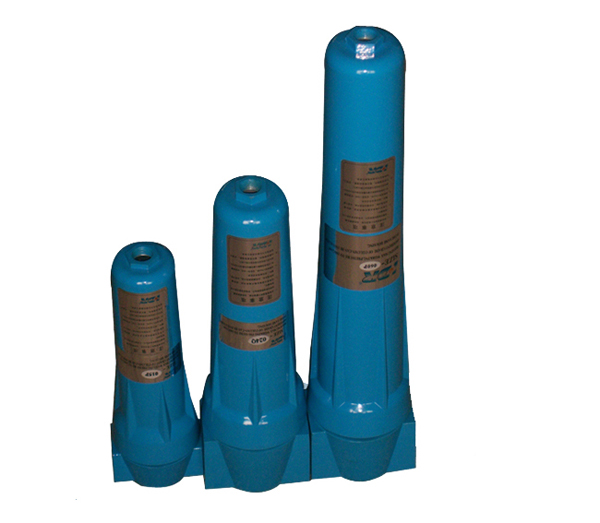

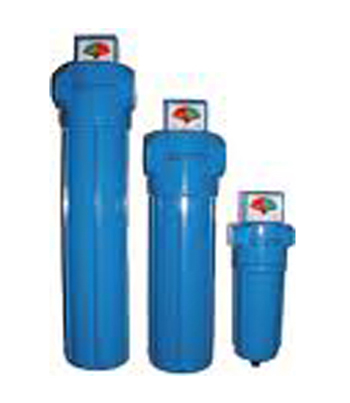

The air filter can filter out dirt,oil and water.Depending on the type of compressed air filter,we can effectively remove up to 99.9% of these impurities.

Category:
Description

The air filter can filter out dirt,oil and water.Depending on the type of compressed air filter,we can effectively remove up to 99.9% of these impurities.

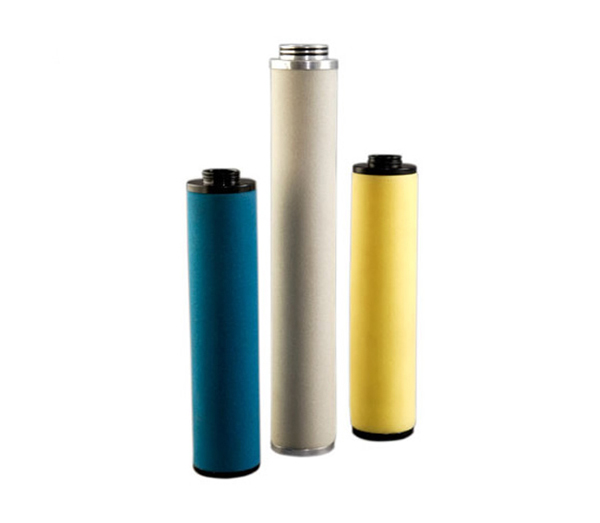

Three types of elements are available

  1. A grade 3 micron pre-filter
  2. B grade 1 micron separator filter
  3. C grade 0.01 micron separator filter



A Grade 3 Micron Pre-Filter

This 3 micron pre-filter has a 3 micron ceramic standard compressed air filter and water separator.It removes large liquid loads and all solid particles 3 micron and larger.This air filter can be used as a separator downstream of the after cooler of point-of-use filter where heavy liquid loads are expected(air systems without after coolers or dryers)

 Model
 Filteration impurities
 Oil filtering cotent
 Initial pressure difference
 Maximum pressure difference
 Connecting size
 Air flow
(m³/min)
 JF-A-007
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 1″～1
 1
 JF-A-015
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 1″～1
 1.5
 JF-A-024
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
  1″～1 1/2″
 2.4
 JF-A-035
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
  1″～1 1/2″
 3.5
 JF-A-060
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
  1″～1 1/2″
 6
 JF-A-090
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 2″～2 1/2″
 9
 JF-A-120
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 2″～2 1/2″
 12
 JF-A-150
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
G 2″～2 1/2″
 15
 JF-A-240
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D200
 24
 JF-A-360
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D200
 36
 JF-A-450
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D200
 45
 JF-A-600
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D200
 60
 JF-A-900
 3 micron
 5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D200
 90



B Grade 1 Micron Air Line Filter

This 1 micron compressed air filter removes all liquid water,oil aerosols,and all solid particles 1 micron and larger.This ari filter can be used as a general filter for shop air,after filter for pressure wing desiccant dryers,and as a point-of-use filter on systems utilizing after coolers or dryers.

Model
 Filteration impurities
 Oil filtering cotent
 Initial pressure difference
 Maximum pressure difference
Connecting size
ir flow
(m³/min)
 JF-B-007
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 3/4″～1″
 1
 JF-B-015
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 3/4″～1″
 1.5
 JF-B-024
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 1″～1 1/2″
 2.4
 JF-B-035
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 1″～1 1/2″
 3.5
 JF-B-060
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 1″～1 1/2″
 6
 JF-B-090
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 2″～2 1/2″
 9
 JF-B-120
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 2″～2 1/2″
 12
 JF-B-150
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 2″～2 1/2″
 15
 JF-B-240
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D110
 24
 JF-B-360
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D150
 36
 JF-B-450
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D150
 45
 JF-B-600
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D150
 60
 JF-B-900
 1 micron
 0.5 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D200
 90



C Grade 0.01 Micron Air Line Filter

The 0.01 micron coalescing filters coalesce and remove 99.99% of oil aerosols for virtually oil free air.This air filter can be used with oil-lubricated compressors to produce oil free air for painting(spray and powder),molding for plastics,instrumentation and controls,fluid logic and air bearings.

Model
 Filteration impurities
 Oil filtering cotent
 Initial pressure difference
 Maximum pressure difference
 Connecting size
 Air flow
(m³/min)
 JF-C-007
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 3/4″～1″
 1
 JF-C-015
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 3/4″～1″
 1.5
 JF-C-024
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 1″～1 1/2″
 2.4
 JF-C-035
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 1″～1 1/2″
 3.5
 JF-C-060
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 1″～1 1/2″
 6
 JF-C-090
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 2″～2 1/2″
 9
 JF-C-120
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 G 2″～2 1/2″
 12
 JF-C-150
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
G 2″～ 2 1/2″
 15
 JF-C-240
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D110
 24
 JF-C-360
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D150
 36
 JF-C-450
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D150
 45
 JF-C-600
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D150
 60
 JF-C-900
 0.01 micron
 0.01 PPM
 0.1KG/CM2
 0.7KG/CM2
 PN16D200
 90
